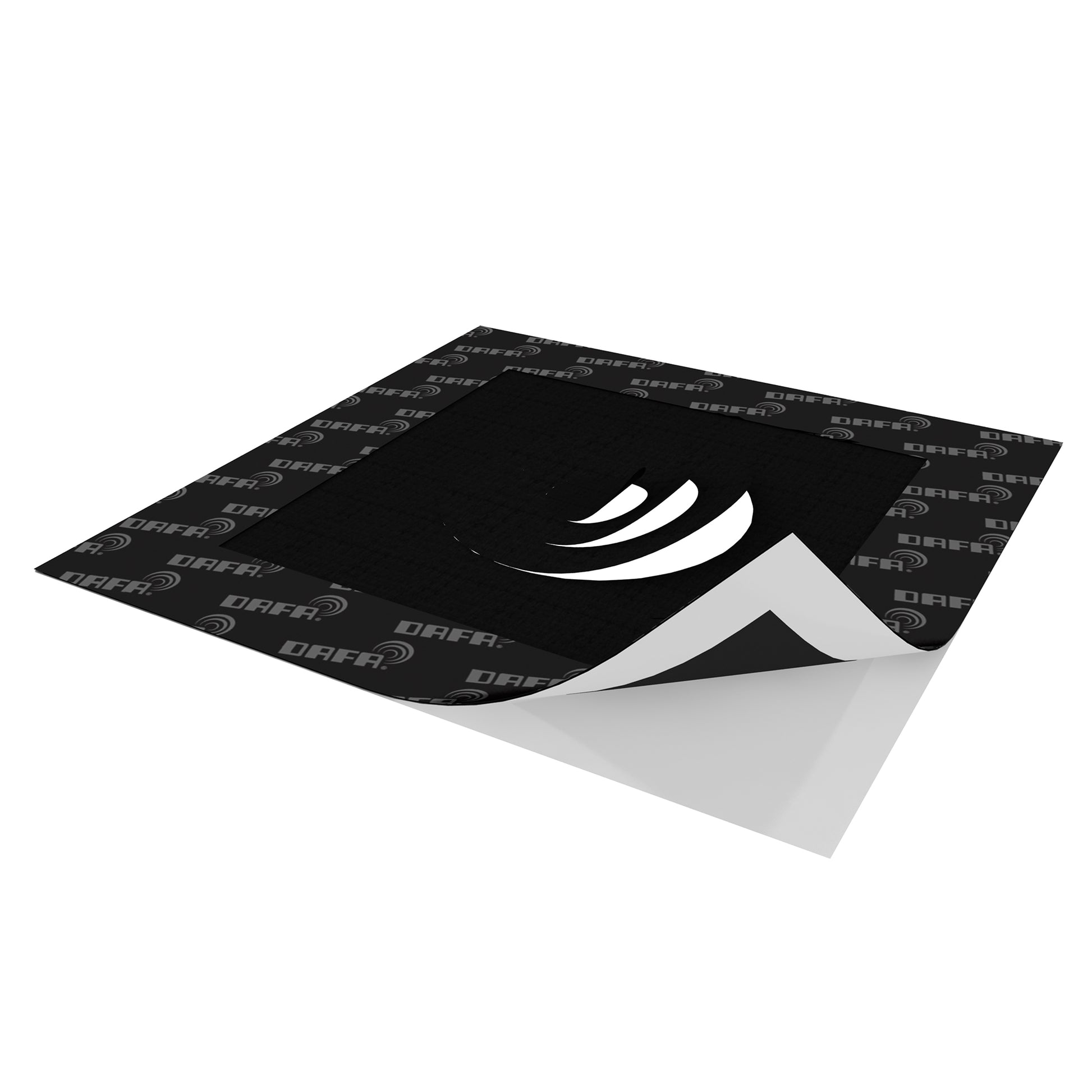

• DAFA Airtight Universal Pipe Grommet – flexible black sealing mat for air and vapour-tight pipe penetrations in construction, shown with self-adhesive backing

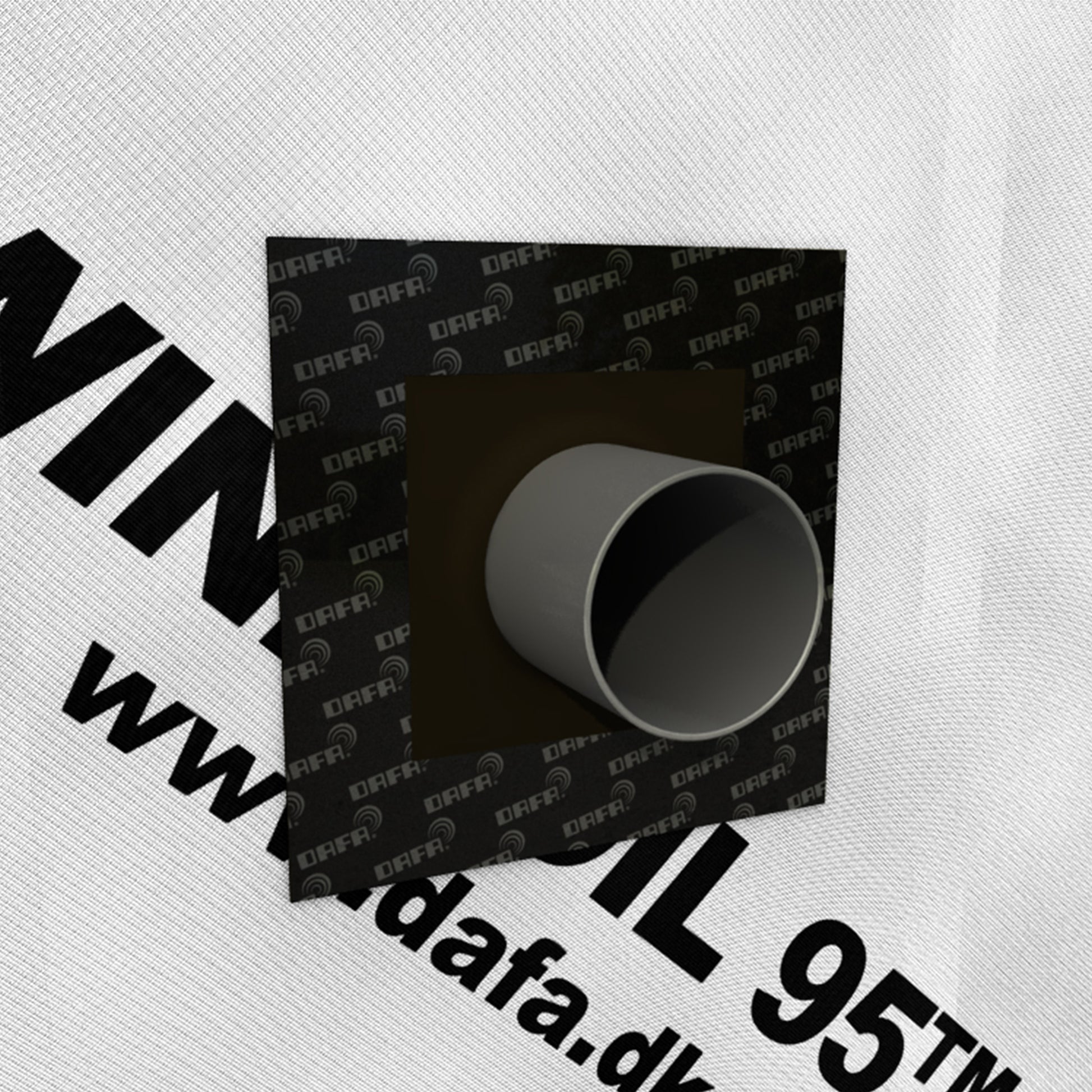

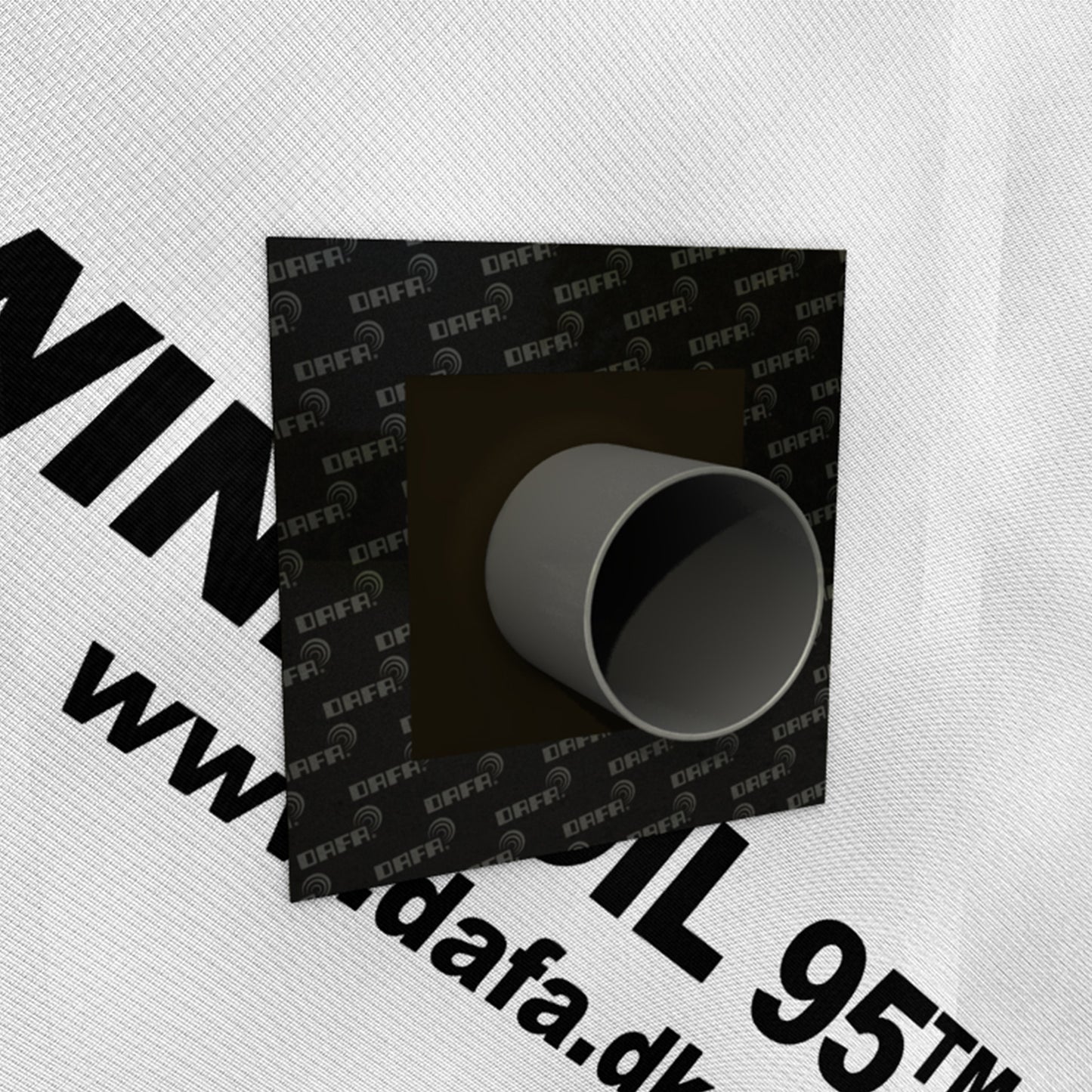

  • DAFA Airtight Universal Pipe Grommet installed around a pipe penetration in a membrane wall, providing an airtight seal for energy-efficient and moisture-protected buildings.
  • DAFA Airtight Universal Pipe Grommet Installation Video
1 3

DAFA Airtight Universal Pipe Grommet

DAFA Airtight Universal Pipe Grommet

£7.32
£7.32
Sale Sold out
Taxes included. Shipping calculated at checkout.

DAFA Universal Pipe Grommet – Airtight Sealing for New Builds. The DAFA Universal Pipe Grommet is a patented, high-performance solution for airtight pipe penetrations in new build projects. Part of the DAFA AirStop System, this grommet seals directly onto the vapour barrier, providing a proper seal to prevent air leakage, ensuring thermal efficiency and airtight construction. It meets UK building regulations and Passive House standards, making it an essential component for energy-efficient homes.

Enhance Your Energy Savings
Installing the DAFA Universal Pipe Collar ensures airtight pipe penetrations from day one. By eliminating air leaks, you reduce heat loss and improve overall building performance. Over time, these energy savings translate into lower utility costs, reduced environmental impact, and a more comfortable indoor climate.

Applications
• Residential and commercial new builds for airtight and energy-efficient projects.
• Vapour barrier grommets for continuous airtightness in walls, floors, and roofs.
• Mechanical ventilation systems to eliminate uncontrolled air movement.
• Sealing gaps around windows, doors, and other structural openings.

View full details
Type 260mm Type 345mm Type 520mm
Pre-Punched Marking Diameter Ø Suitable Round Pipe Ø Diameter Ø Suitable Round Pipe Ø Diameter Ø Suitable Round Pipe Ø
1 12mm 15-25mm 12mm 15-25mm 12mm 15-25mm
2 25mm 40-60mm 25mm 40-60mm 25mm 40-60mm
3 45mm 60-90mm 45mm 60-90mm 45mm 60-90mm
4 70mm 90-110mm

Key Features

• Universal Fit: One flexible gasket fits all common pipe sizes and ducts, simplifying product selection.
• Airtight Seal: Prevents air leakage and improves thermal comfort and energy efficiency.
• Easy Installation: Attaches to the vapour barrier without tools, sealants, or adhesives, saving time and effort.
• Durable: Made from EPDM rubber with strong acrylic adhesive, designed to withstand construction site conditions.
• Compliance: Meets UK regulations and Passive House Institute standards for airtightness and energy efficiency.
• Protection: Prevents mould, pollutants, and uncontrolled air movement, ensuring better indoor air quality.

Click to View/Download

Technical Datasheet
