Everything You Need to Know About Duct Sealing Systems: From Cable Duct Seals to Circular Transit Seals

Sealing ducts, conduits and cable penetrations is mission‑critical across power, telecoms, water, wastewater, data centres, transport and civil infrastructure.

This guide covers everything from cable duct sealing and duct sealing systems to circular transit seals and reusable duct plugs—so you can specify with confidence.
In this guide we’ll cover:
• Key definitions & terms: duct seal, cable duct sealing, transit seals, circular seals, etc.
• Industry standards & compliance (fire, gas, water, WIMES, DSEAR, etc.).
• Materials & methods: what works, what doesn’t.
• Pros and cons of different sealing system types.
• Common failures & risks when ducts aren’t properly sealed.
• How to choose the right sealing system: criteria, specs, performance.
• Use cases by industry: power, telco, water, wastewater, civil, etc.
• Newer approaches: reusable plugs / expansion plugs.
• FAQs + buyer’s checklist.

Key Terms & What They Mean

Duct seal / duct seals: Broad term for any material or device used to close or block ducts, cable penetrations, or conduit openings—preventing ingress or egress of water, gas, pests, smoke, fire, etc.

Cable duct sealing: Sealing specifically applied to ducts carrying cables—for power, telecom, fibre, control cables—often with fire, gas, and water‑tightness requirements.

Duct sealing systems: Complete systems comprising sealants, sleeves/blocks, mechanical components and accessories designed to seal ducts under defined hazards.

Circular transit seals: Seals designed for circular ducts or openings; may be modular or sleeve-based, allowing service pass‑through while sealing against ingress.

Fire‑resistant duct seals: Seals tested and certified to resist fire/smoke (e.g., BS EN 1366‑3), often also water/gas tight.

Transit frames / cable transits: Mechanical frames with modular blocks that enable re‑entry and cable management while maintaining sealing performance.

Standards & Compliance (What to Check)

• BS EN 1366‑3 for fire resistance of service penetrations (e.g., cable/duct seals)
• WIMES for UK water industry mechanical/electrical specifications
• DSEAR/ATEX where flammable gases or vapours may be present
• Client, utility and sector‑specific approvals (e.g., rail, marine, oil & gas)
Always verify current documentation and project specs before selection.

Materials & Methods: What Works (and What Doesn’t)

Method / Material	What it is	Advantages	Disadvantages / Issues

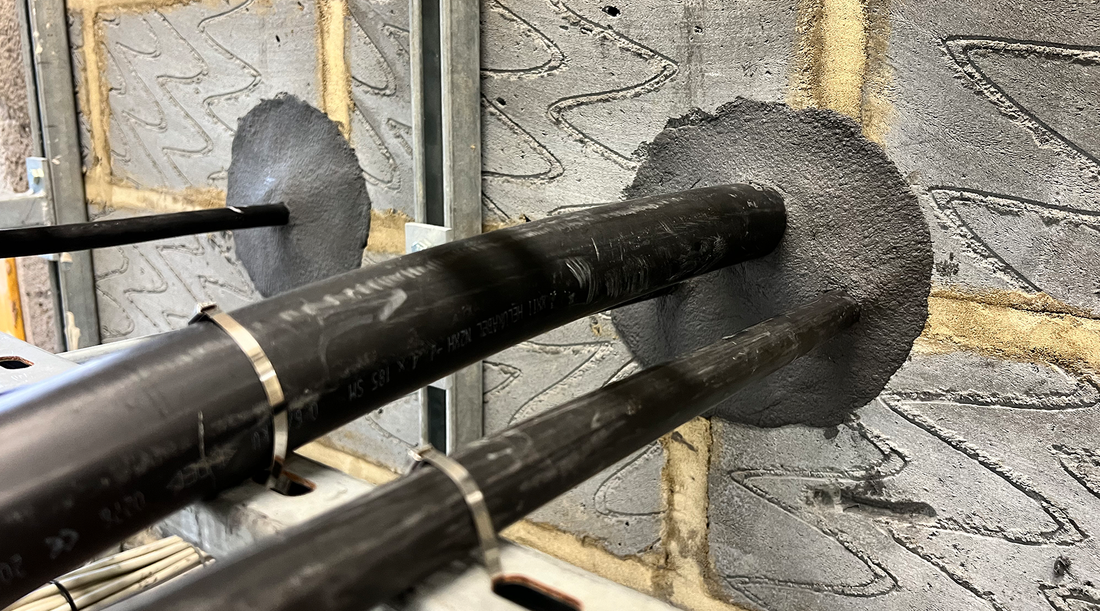

Sealants / Mastics (fire‑rated, silicone / intumescent)	Applying a bead or filling gaps around cables/ducts with appropriate compounds.	Conforms to irregular shapes; many are fire tested; good sealing.	Skilled install; curing time;
Insert sleeves / blocks / modular backing	Structural support inside the duct around cables; aids separation and sealing.	Clean, strong seals; supports re‑entry; better cable segregation.	Added cost/complexity; must match environment; may compress over time.
Mechanical transit frames / transit seals	Frames with removable blocks; allow re‑entry and configuration changes.	Flexible, reusable, robust performance.	Higher cost; precise install required; more components to maintain.
Blank plugs / expansion plugs / duct bungs	Devices inserted to seal empty ducts/openings.	Simple, fast, reusable; ideal for empty ducts.	Limited for high‑pressure or fire‑rated conditions; choose material carefully.

Common Problems When Duct Sealing Is Poor or Missing

• Water ingress leading to corrosion, insulation damage, shorts, or equipment failure.

• Gas ingress (e.g., methane, H₂S) creating hazardous conditions and compliance issues.

• Fire and smoke spread via unsealed penetrations, breaching compartmentation.

• Vermin, dust, and debris entering ducts or enclosures.

• Pressure loss or unintended airflow where pressurisation/air control is required.

• Chemical/UV attack on incompatible materials.

• Regulatory non‑compliance and potential insurance implications.

• Ongoing maintenance costs from premature seal failure.

How to Evaluate & Choose the Right Sealing System

• Environment & hazards: fire rating, water/gas exposure, chemicals, temperature, UV, submerged or marine settings.

• Performance: pressure rating (bar), fire rating (e.g., tested to BS EN 1366‑3), ingress protection, smoke-tightness.

• Re‑entry: whether cables will be added/removed later.

• Geometry: circular vs rectangular; duct ID/OD; cable count and configuration (e.g., trefoil).

• Material quality: corrosion resistance, compatibility, ageing behaviour.

• Compliance: WIMES, DSEAR/ATEX, utility or client specs; documented test evidence.

• Installation & maintenance: tooling, surface prep, cure times, skill level.

• Lifecycle cost: initial price + longevity + downtime risk + availability/lead time.

Use Cases by Industry

Industry	Typical Requirements	Special Considerations
Power / Utilities (LV/MV/HV)	Cable entries to substations, tunnels, vaults; moisture and arc risks; stringent safety.	High fire rating, gas/water tightness, cable separation, utility approvals.
Telecom / Fibre / Data Centres	Fibre/control cable ducts; need clean, dry, scalable pathways.	Low smoke/zero halogen; re‑entry; pull cords; minimal disruption.
Water / Wastewater	Ducts into treatment works, pump stations, MCC rooms; high moisture/corrosion.	WIMES compliance; water/gas tightness; chemical resistance; possible submersion.
Oil & Gas / Marine	Penetrations through bulkheads/decks; flammable gas risk; harsh environments.	Explosion/gas tightness; high fire/smoke resistance; marine certifications.
Commercial / Industrial / Civil	HVAC, controls, power; empty ducts for future services; building regulations.	Fire compartmentation; UV/moisture exposure; cost-effective yet compliant solutions.

Newer Approaches: Reusable Expansion Plugs for Empty Ducts

Reusable plastic or rubber expansion plugs—often called duct plugs, duct bungs or pipe stoppers—offer a fast, non‑corrosive way to seal empty ducts. Look for non‑metallic construction to avoid corrosion, adequate pressure resistance (e.g. 0.5 bar), tie rings/pull‑cord options for future cabling, and a wide size range. They can be used alone for non‑fire‑rated applications or alongside full duct sealing systems as part of a staged installation plan.

FAQs

Q: Do I always need a fire‑rated duct seal?
A: Only where the penetration breaches a fire compartment or where the specification requires it. In buildings and many utility rooms, the answer is usually yes—look for systems tested to BS EN 1366‑3 or equivalent.

Q: How do I choose the right pressure rating?
A: Confirm if your application needs water/gas tightness and to what level. Many cable ducts need up to 0.5 bar; higher pressures may require mechanical systems or specialist solutions.

Q: Can I add cables later without redoing the seal?
A: Choose re‑enterable systems—mechanical transits or modular sleeves with compatible sealants. For empty ducts, reusable expansion plugs are ideal until you cable up.

Q: What about corrosion?
A: Avoid metal components (unless stainless steel) where corrosion is likely. Plastic/rubber systems and high‑quality sealants reduce long‑term failure risk.

Q: How important is stock availability?
A: Very. Projects stall without the right sizes. Prefer suppliers who hold common sizes and can ship next day.

SEO Keywords Covered

duct seal, duct seals, ducting system, duct sealing systems, cable duct sealing, circular transit seals, duct plugs, duct bungs, pipe stoppers, blank duct seal, empty duct seal, re‑enterable duct sealing, fire‑rated duct seals, WIMES compliant duct seals

Summary

A well‑specified duct sealing strategy protects assets, ensures compliance, and reduces lifecycle costs. Match hazards and performance requirements to the right system—be that fire‑rated cable duct seals, circular transit seals, mechanical frames, or reusable expansion plugs for empty ducts.
